UNIC URW-506
(3.0t x 3.4m)
The mini yet mighty UNIC URW-506 spider crane is capable of lifting loads of up to 3.0 tonnes and boasts from a lifting height of up to 16 metres. It features a six section hydraulic boom to allow a maximum working radius of 15.52m.
- Total width 1.4m
- Max working radius 15.52m
- Max boom length 15.71m
- Working area limitation
- Slew limitation (optional)
- Diesel powered and optional mains electric
- Zero length increase with electric option
- Operator control of outrigger extension
- Radio remote control as standard
- Intelligent throttle activation for economy and ecology

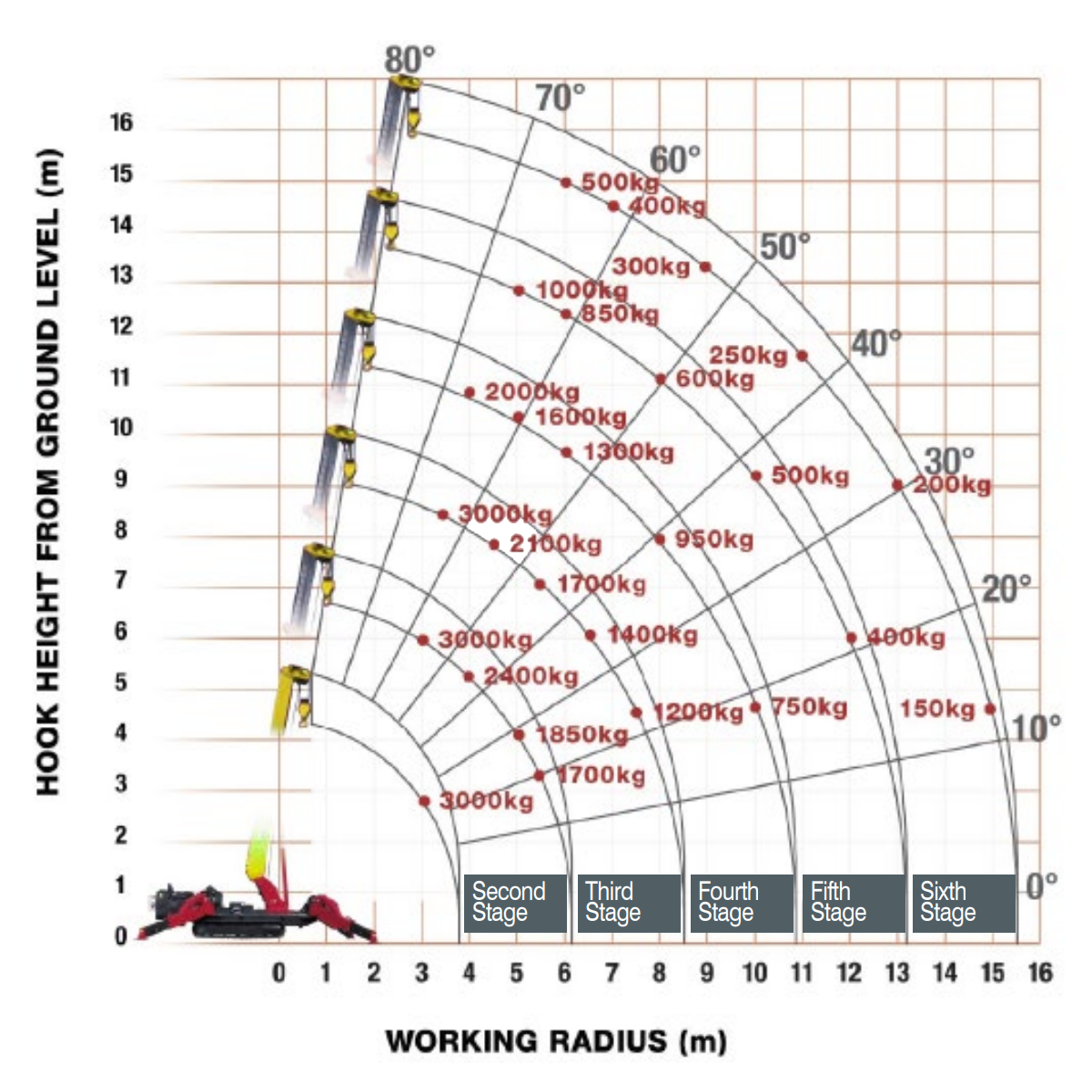

Stage Extensions
FIRST & SECOND STAGES EXTENDED 3.93-6.33M BOOM LENGTH
Working Radius m
Outrigger Max Kg
Outrigger Min Kg
THIRD STAGE EXTENDED 6.33-8.72M BOOM LENGTH
Working Radius m
Outrigger Max Kg
Outrigger Min Kg
FOURTH STAGE EXTENDED 8.72-11.05M BOOM LENGTH
Working Radius m
Outrigger Max Kg
Outrigger Min Kg
FIFTH STAGE EXTENDED 11.05-13.38M BOOM LENGTH
Working Radius m
Outrigger Max Kg
Outrigger Min Kg
SIXTH STAGE EXTENDED 16.3-19.2M BOOM LENGTH
Working Radius m
Outrigger Max Kg
Outrigger Min Kg
Dimensions
Technical Data
| Crane capacity | 3.0t x 3.4m |
| Max working radius | 15.52m |
| Max lifting height | 16m |
| Rope length | 21.75m (4 fall), 43.5m (2 fall) 87m (1 fall) |
| Dimensions (folded) | 4870mm (L) x 1400mm (W) x 2305mm (H) |
| Weight (unladen) | 4840kg (4990kg with electric option) |
| Point loadings | Due to the many variables involved, point loadings are only available on request |
| Hook speed | approx 17m / min (with 4 layers and 4 falls) |
| Telescopic boom length | 3.93m - 15.71m |
| Telescoping speed | 11.78m / 35sec |
| Boom type | 6 section hydraulically telescoping boom |
| Derricking angle / speed | approx: 0 – 80 / 18 seconds |
| Slewing angle / speed | approx: 360˚ (continuous) 2.5min-¹ (rpm) |
| Traction system drive | Hydrostatic 2-speed |
| Travel speed | 0 - 3km / h |
| Gradability | 23˚ |
| Track ground length | 1750mm |
| Track ground pressure | 41.5kPa (0.46kg / cm² |
| Track width | 300mm |
| Engine manufacturer | Mitsubishi |
| Fuel | Diesel (electric dual power option) |
| Maximum output | 18kW (24.5PS) / 2100min-¹ (rpm) |
| Starting method | Electric |
| Tank capacity | 40 litres |
| Power | 7.5kW |
| Voltage | 400v AC 50 / 60Hz |
| Standard equipment | Computer controlled moment limiter (safe load indicator), overload warning lamps, intelligent voice warning system, radio remote control, intelligent throttle activation |
| Optional equipment | 4 fall hook block, 2 fall hook block, 1 fall hook block, mains electric dual power (400v), low marking tracks, slew limitation |
Attachments & Accessories
Full Safe Load Indicator
as standard
Radio Remote Control
as standard
