UNIC URW-295-3
(2.9t x 1.4m)
The UNIC URW-295-3 mini spider crane is renowned for its mobility, rugged reliability and high productivity in some of the most compact and restricted lifting locations. With a width of just 0.6m, the URW-295 can access through a standard door frame yet comes with a heavy lifting capacity of 2.9 tonnes.
- Total width 0.6m
- Max working radius 8.41m
- Max boom length 8.65m

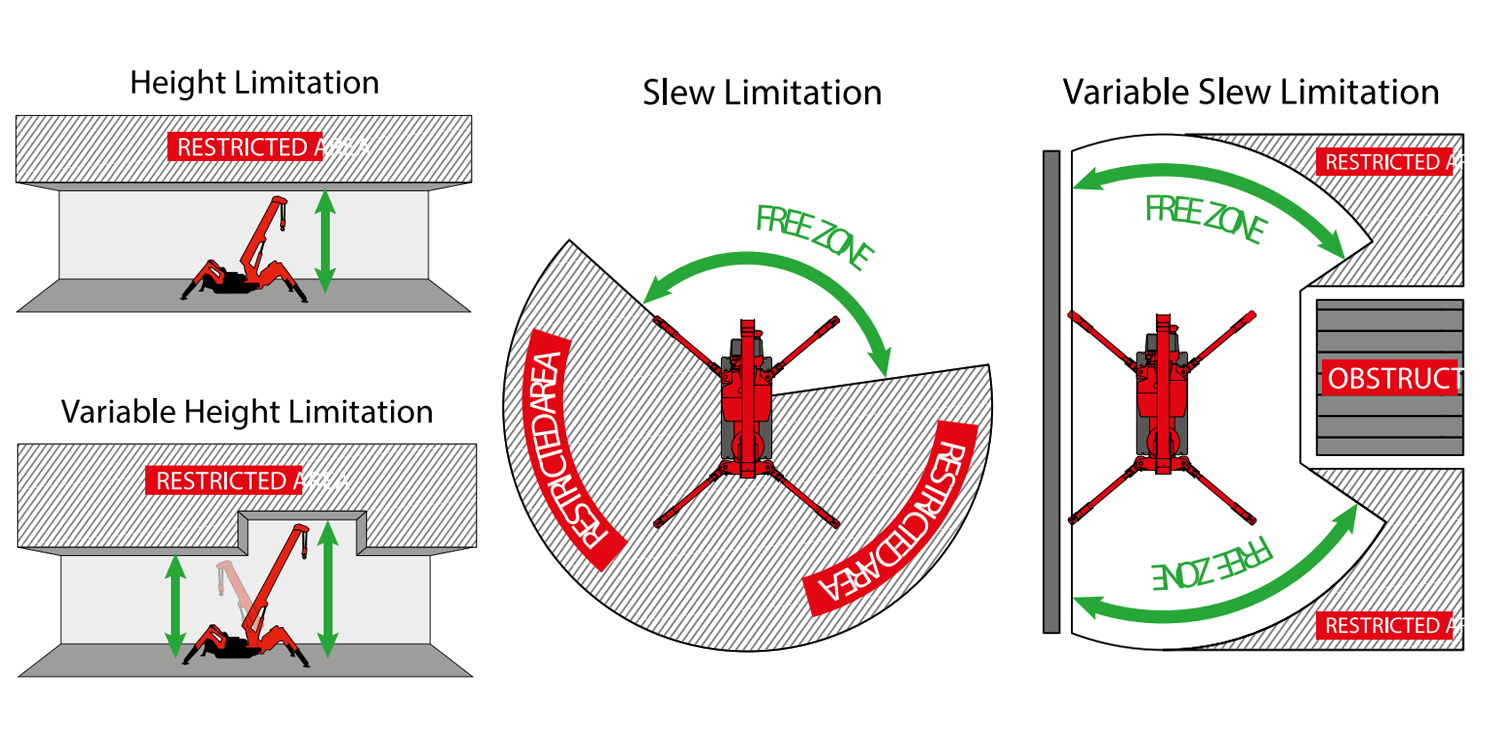

- Working area limitation
- Slew limitation (optional)
- Operator control of outrigger extension
- Radio remote control as standard
- Petrol powered, optional LPG dual, electric dual and diesel
- Zero length increase with electric option (except diesel)
- Intelligent throttle activation for economy and ecology
- Optional searcher hook or fly jib
Stage Extensions
FIRST & SECOND STAGES EXTENDED 2.53-4.075M BOOM LENGTH
Working Radius m
Outrigger Max Kg
Outrigger Min Kg
THIRD STAGE EXTENDED 4.075-5.61M BOOM LENGTH
Working Radius m
Outrigger Max Kg
Outrigger Min Kg
FOURTH STAGE EXTENDED 5.61-7.13M BOOM LENGTH
Working Radius m
Outrigger Max Kg
Outrigger Min Kg
FIFTH STAGE EXTENDED 7.13-8.65M BOOM LENGTH
Working Radius m
Outrigger Max Kg
Outrigger Min Kg

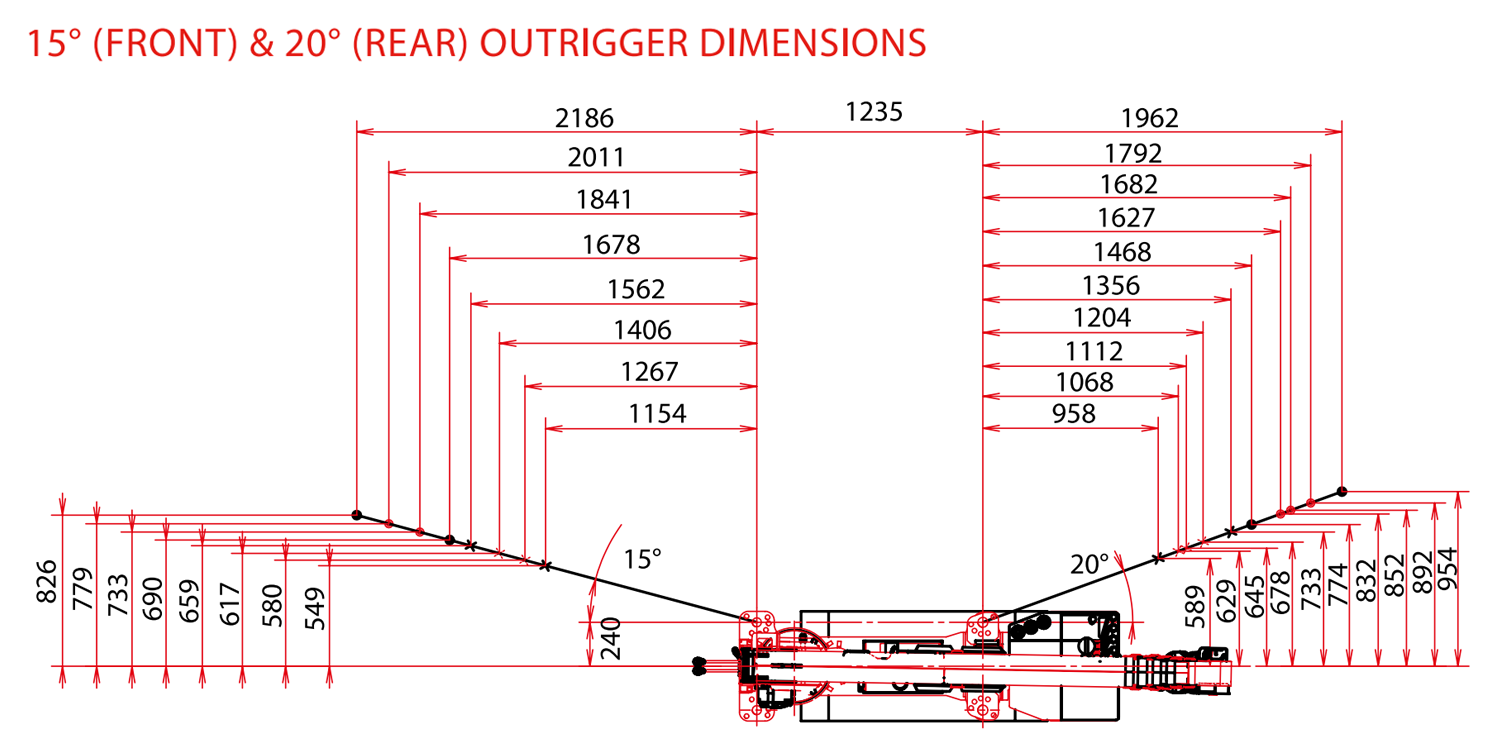

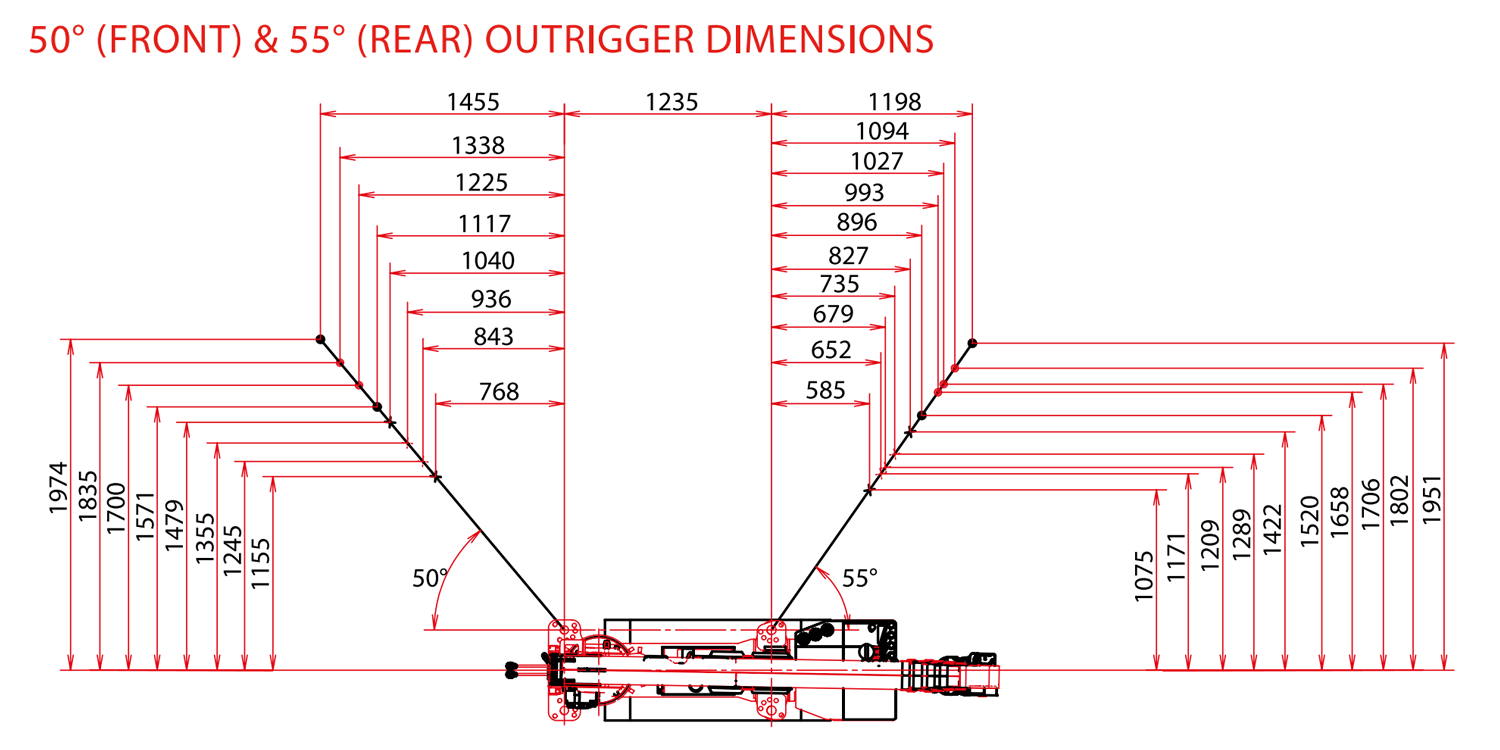

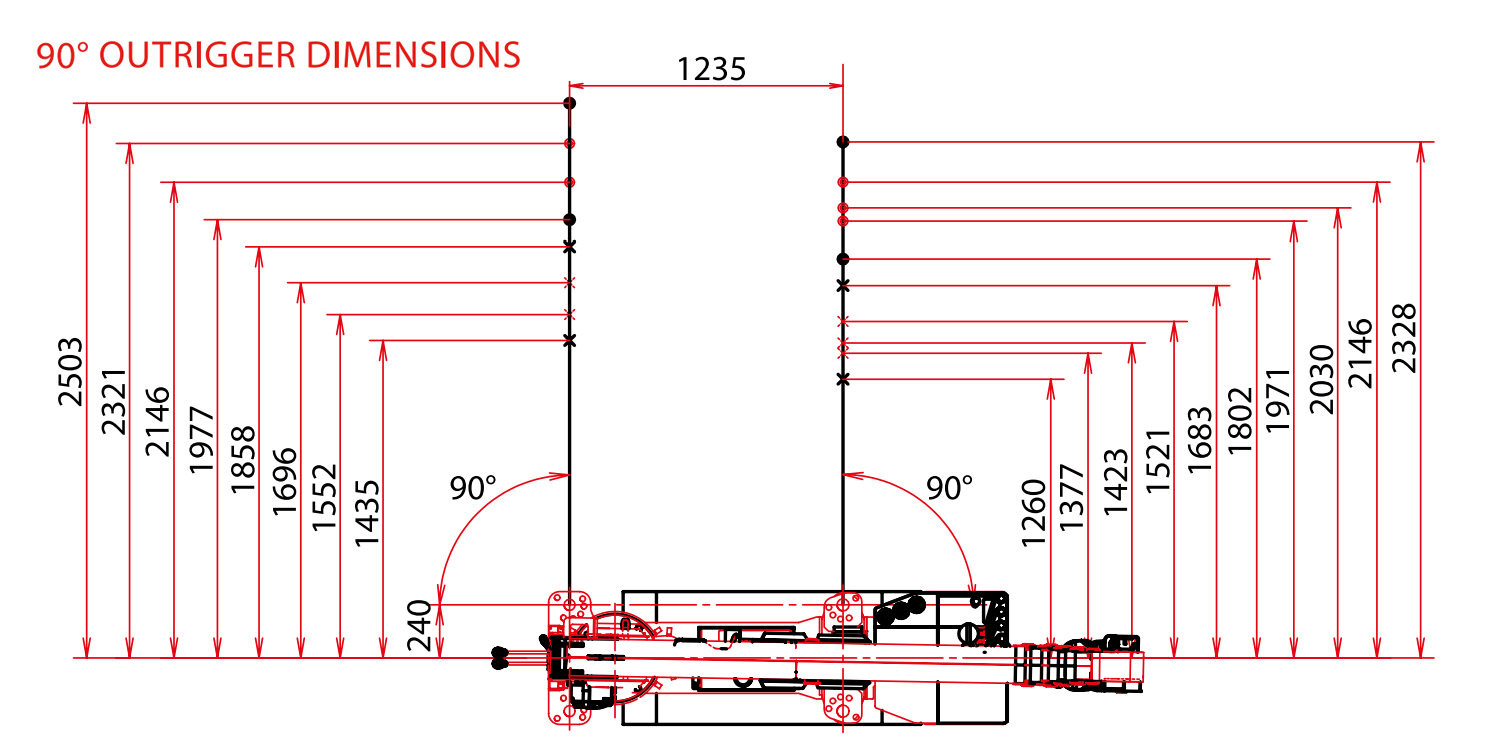

Outrigger Dimensions

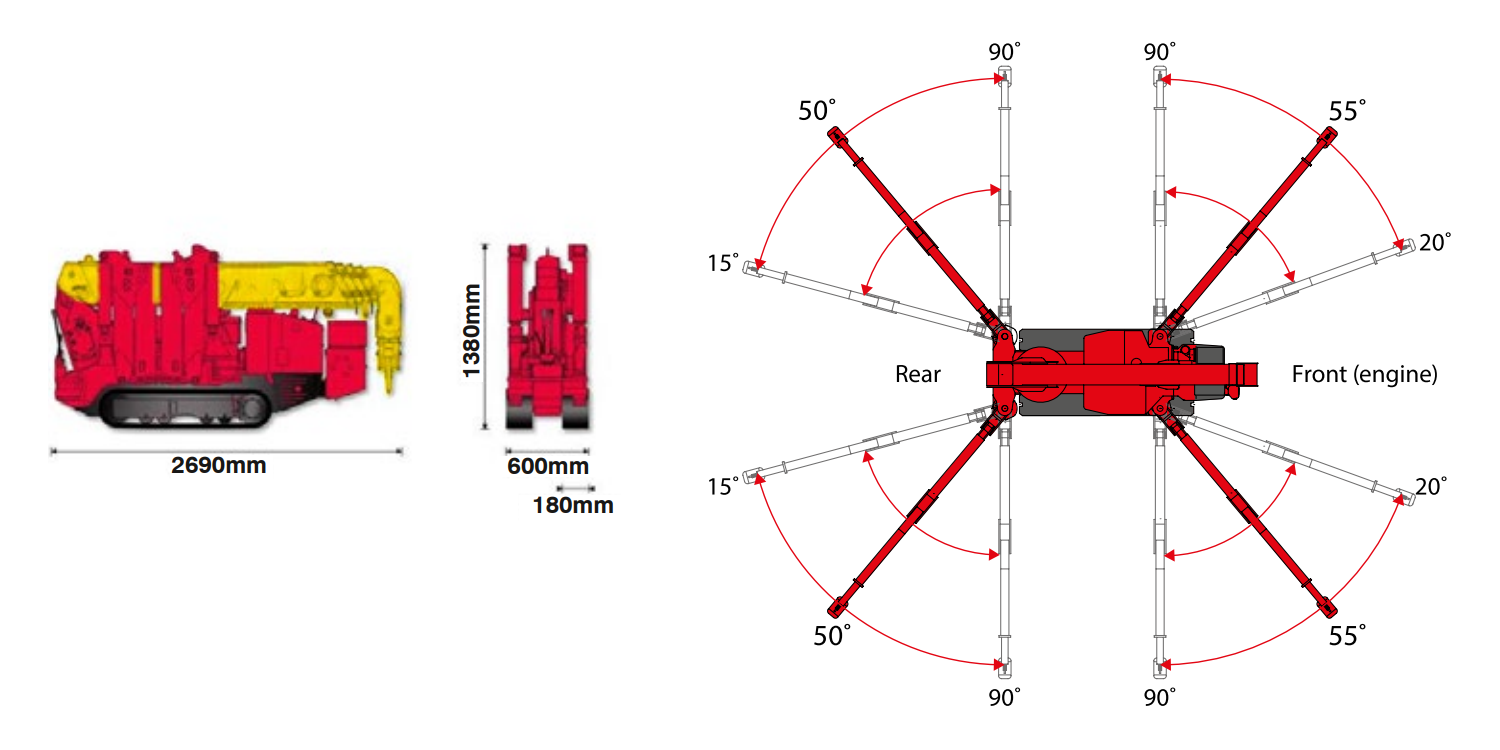

Dimensions
Technical Data
| Crane capacity | 2.9t x 1.4m |
| Max working radius | 8.41m |
| Max lifting height | 8.8m |
| Rope length | 11.7m (4 fall), 23.4m (2 fall) 46.8m (1 fall) |
| Dimensions (folded) | 2690mm (2905mm diesel/electrical dual) (L) x 600mm (W) x 1380mm (H) |
| Weight (unladen) | 1850kg (1950kg electric option, 1920kg diesel option, 2090kg diesel and electric dual option) |
| Point loadings | Due to the many variables involved, point loadings are only available on request |
| Hook speed | approx 10m / min (with 4 layers and 4 falls) |
| Telescopic boom length | 2.53m - 8.65m |
| Telescoping speed | 6.12m / 20sec |
| Boom type | 5 section hydraulically telescoping boom, hexagonal box construction |
| Derricking angle / speed | approx 0 – 78˚/ 11 seconds |
| Slewing angle / speed | approx 360˚ (continuous) 1.5min-¹ (rpm) |
| Traction system drive | Hydrostatic stepless forward and reverse |
| Travel speed | 0 - 2.3km / h |
| Gradability | 20˚ |
| Track ground length | 1050mm |
| Track ground pressure | 48kPa (0.49kg / cm² |
| Track width | 180mm |
| Engine manufacturer | Mitsubishi (Kubota diesel) |
| Fuel | Petrol (LPG dual, electric dual and diesel options) |
| Maximum output | 96kW (13PS) / 2500min-¹ (rpm) |
| Starting method | Electric and recoil start as standard |
| Tank capacity | 6 litres |
| Power | 3.7kW |
| Voltage | 400v AC 50 / 60Hz |
| Standard equipment | Computer controlled moment limiter (safe load indicator), computer controlled intelligent voice warning system, overload warning lamps, radio remote control, intelligent throttle activation |
| Optional equipment | 2 fall hook block, 1 fall hook block, LPG dual power mains electric dual power (400v), diesel engine, low marking tracks, slew limitation |
Attachments & Accessories

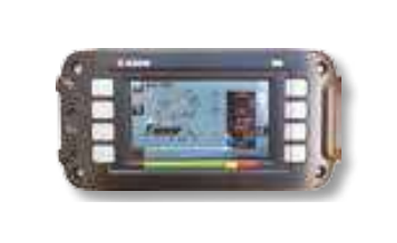

Full Safe Load Indicator
as standard

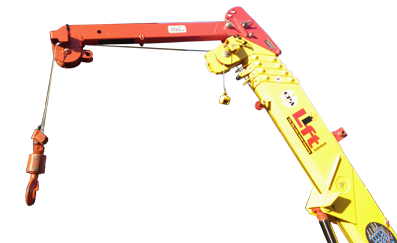

Combined Searcher Hook & Fly Jib
as option

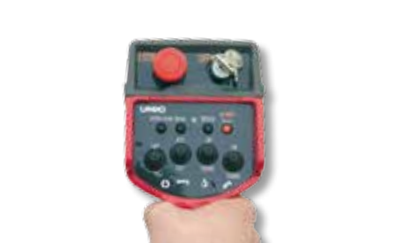

Radio Remote Control
as standard
